Description

Features

Best-in-class Audio

Loud front-facing speaker and Intelligent Audio feature automatically adjusts the radio volume according to the environment’s noise level.

Day/Night Mode on Display

This display has improved resolution for easier viewing even in broad daylight. It also also features a night mode that makes the screen easier to read in dark environments.

Embedded Bluetooth Audio and Data

Embedded into the radio and enables connectivity with wireless accessories, including Motorola’s unique Operations Critical Wireless earpieces designed for rugged and reliable communications. Share real-time information easily by connecting radios to Bluetooth-enabled data devices.

Text Messaging

Use text messaging when discretion is required or routine communication needs to be delivered without interrupting workers or guests.

Rugged Design

Tightly sealed against wind and dust, and submersible in up to one meter of water for 30 minutes (IP57).

Certified Intrinsically Safe (CSA)

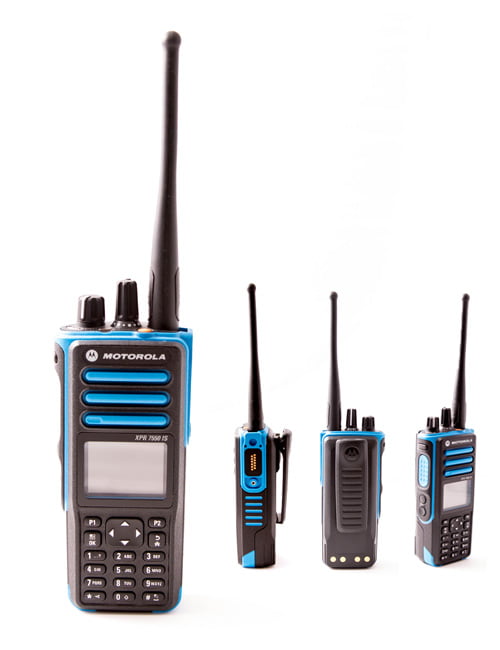

Certified as intrinsically safe by CSA when purchased and equipped with a CSA battery for use in hazardous environments.

Basic or Enhanced Privacy

Built-in scrambling for increased security.

Emergency Button

Orange button on the top of the radio can be programmed to send an alert to a supervisor or dispatcher during an emergency situation.

Transmit Interrupt

Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it’s needed.

Large, Full-color Display

Features a 5-line color display with a flexible menu-driven interface. Icons and large easy-to-use navigation buttons ease message reading and menu navigation.

Integrated High Efficiency GPS

Use the radio’s integrated GPS receiver to track your vehicles and your workforce. Motorola’s innovative technology gives you higher precision at lower cost, to enhance the safety and accountability of your team.

Productivity-enhancing Data Applications

Features the industry’s largest application developer program to enable a wide variety of customized applications including: location tracking, Bluetooth data, email gateways, dispatch, telephony, man-down and work order ticket management.

Capacity Plus

Single-site digital trunking system that maximizes the capacity of your MOTOTRBO system. Use it to enable a high volume of voice and data communication for over a thousand users at a single site without adding new frequencies.

Linked Capacity Plus

Linked Capacity Plus is an entry level, multi-site digital trunking system configuration for the MOTOTRBO platform. It leverages the high capacity of Capacity Plus, with the wide area coverage capabilities of IP Site Connect to keep your staff at various locations connected with an affordable high capacity, wide area trunking solution.

IP Site Connect

A digital solution that uses the internet to extend the voice and data capabilities of MOTOTRBO. Use it to link up to 15 sites for communication among geographically dispersed locations, to create wide area coverage or enhance coverage at a single site with physical barriers.

Performance Characteristics

• Frequency band: VHF, UHF-1

• 4 5 Watt: Yes

• Repeater capable: Yes

• Estimated battery life: 16 hours in digital mode, 12 hours in analog mode

• Standard battery chemistry type: Lithium Ion

• 1 Watt: Yes

Physical Characteristics

• Weight with Li-Ion non-FM Battery: 27 oz (482 g)

• Dimensions (HxWxL) with Li-Ion non-FM Battery: 5.5 x 2.2 x 1.6in (138.5 x 56.7 x 39.8 mm)

• Available option board: Yes

• Emergency button: Yes

• Keypad: Full

• Display: Full, Color, Day and night mode

Radio Features

• Enhanced privacy: Yes

• Transmit interrupt: Yes

• Digital private line: Yes

• Private line: Yes

• Monitor Permanent (Sticky) Monitor: Yes

• Lone worker: Yes

• GPS operation: Yes

• Voice announcement: Yes

• Signaling: MDC (Encode/Decode), Quik-Call II (Encode/Decode), DTMF Encode

• Intelligent audio: Yes

• Bluetooth: Integrated Bluetooth audio, Integrated Bluetooth data

• Programmable buttons: Yes

• Voice operated transmit (VOX): Yes

• Time out timer: Yes

• Talkaround: Yes

• Text messaging capable: Yes

• Scan types: Normal, Priority, Dual priority, Nuisance channel delete, Talk group, All group, System, Home revert

• Phone book: Yes

• Group call: Yes

• One to one calling: Yes

• Missed call alerts: Yes

• CPS (Customer Programming Software): Yes

• Channel spacing: 6.25, 12.5, 25

• Number of channels: 1000

• Channel scan: Yes

• Caller ID: Yes

• Call tones: Yes

• Call forward: Yes

• Busy channel lockout: Yes

• Integrated voice and data: Yes

Technology

• System type: Conventional, TDMA, Capacity Plus, IP Site Connect

• Digital technology: Yes

User Environment

• Intrinsic safety standard: CSA certified

• IP Standards: IP67

• Submersible: Yes

• Mil spec: 810 C, 810 D, 810 E, 810 F, 810 G

• Noise reduction software: Yes

Warranty

• Standard package

  Display Portable Radio, Standard Whip with GPS Antenna, IMPRES™ Li-Ion 1800 mAh Battery (CSA), IMPRES single unit charger, 2.5″ Belt Clip, Expansion Card, User Guide, Two-year Extended Warranty (Canada only)

• Standard warranty: 2 years
